The glass thickness requirements for glass railings mainly depend on the application scenario, safety standards, and load-bearing requirements.
1. Building Code Requirements
Civil Buildings (e.g., residential balconies, staircases): According to the "Technical Specification for Application of Architectural Glass" (JGJ 113-2015), railing glass must use tempered glass or laminated glass, with a single-pane thickness ≥ 6mm. If laminated glass, the single-layer thickness must be ≥ 5mm, and the total thickness ≥ 8.76mm (calculated using 0.76mm PVB film).
Public Places (Shopping Malls, Hotel Atriums): Higher impact resistance standards are required. A thickness ≥ 12mm (laminated or tempered laminated) is recommended, and it must pass a fall protection test (e.g., EN 12600 standard).
2. Load-Bearing and Structural Design

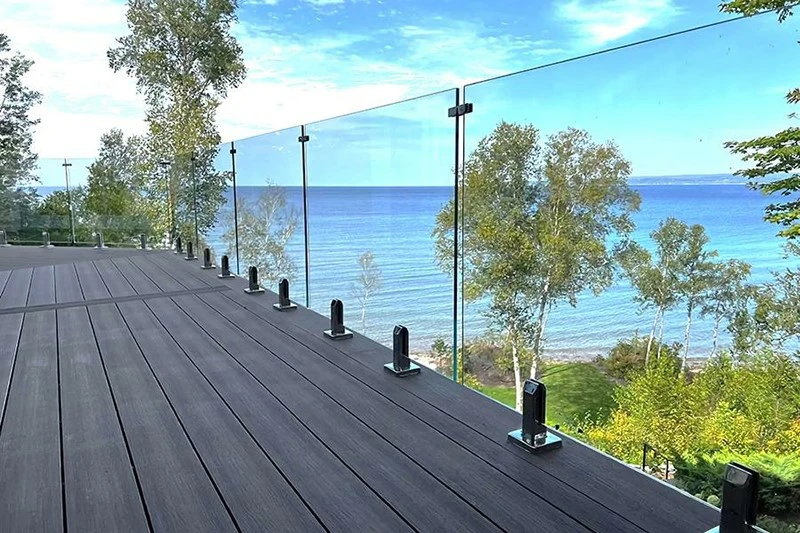

Frameless Glass Railings: Relying on the strength of the glass itself, the thickness is typically 12-19mm, and it requires stainless steel clamps or embedded parts for fixation. For example, the custom glass railings (products available on this site) produced by Beijing Rutong Decoration use 12mm tempered glass and are suitable for villa balconies. Framed railings (e.g., zinc-steel/stainless steel frames): Glass thickness can be slightly lower (8-10mm), but the frame support strength must be ensured. Qingyuan Lianya Metal's Chinese-style glass railings (available on this site) use 10mm tempered glass with a zinc-steel frame, balancing aesthetics and safety.
3. Special Scenario Requirements
High-altitude or edge-adjacent areas: Explosion-proof film or laminated insulated glass is required, with thickness combinations such as 6+0.76+6mm. Hebei Boju's fiberglass ladder railings (available on this site), while not a pure glass structure, feature a 3mm fiberglass composite layer design that can be referenced for similar protection scenarios.
Power/Industrial Facilities: Insulated fiberglass fences (such as the 4mm thick products produced by Zaoqiang Weikuo), while primarily made of fiberglass, reflect high strength requirements. Glass railings in such scenarios need to be thicker (≥15mm).
